KP-2K1080 2K USB High-Definition C-Mount Digital Industry Microscope Camera (US Plug). With its built-in playback function for recording and photography, as well as an automatic searching function for the edge, this device offers superior performance. Additionally, it supports storage by a hard disk and can be connected with a mouse, providing more flexibility and convenience for all of your measuring needs.

Features

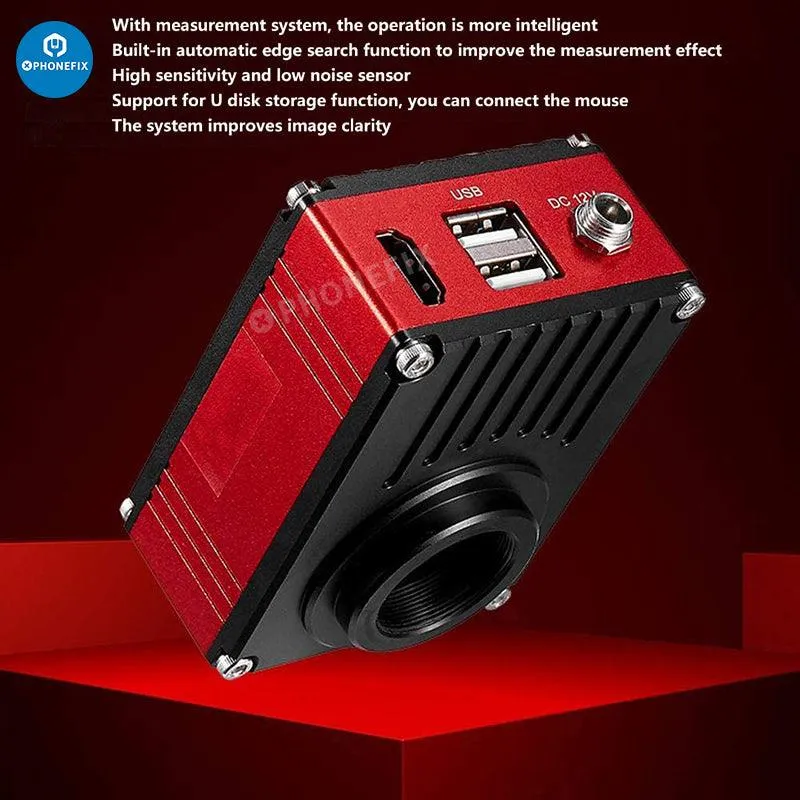

1. High Efficiency: With a measurement system, the operation is more intelligent, faster and more powerful. Built-in automatic edge search function to improve the measurement effect.
2. Highly Sensitive: The system improves image clarity. High sensitivity and low noise sensor, strong performance and smooth preview. Support for U disk storage function, you can connect mouse.
3. Upgrade: Built-in V3.0 version of the measurement system, adding custom interface editing, custom template editing, for DXF lead-in template, file management, measurement data export and other functions.
4. Offers Stable Performance: Support for ARM Cortex A7 dual-core at maximum 1.3ghz processing tool, running smoothly and stable. The built-in video and picture recording function can be displayed and played back.
5. Widely Applications: Support point spacing, point-line spacing, line spacing, center distance, arc, circle, angle, rectangle, polygon measurement, calibration function and automatic edge search.

Specifications

• Brand: FUCOT
• Model: F-2K
• Interface: HDMI
• Resolution: 1920×1080
• Pixel Size: 3.75μm×3.75μm
• Target Size: 1/2
• Data Bit: 12bit
• Shutter Mode: Rolling Shutter
• Output Frame Rate: 60FPS
• Output Color: Color
• Dimension: 60*80*42mm

Note:

1. This product is a high-definition multimedia interface output and can only be connected to the display via the same interface connector.

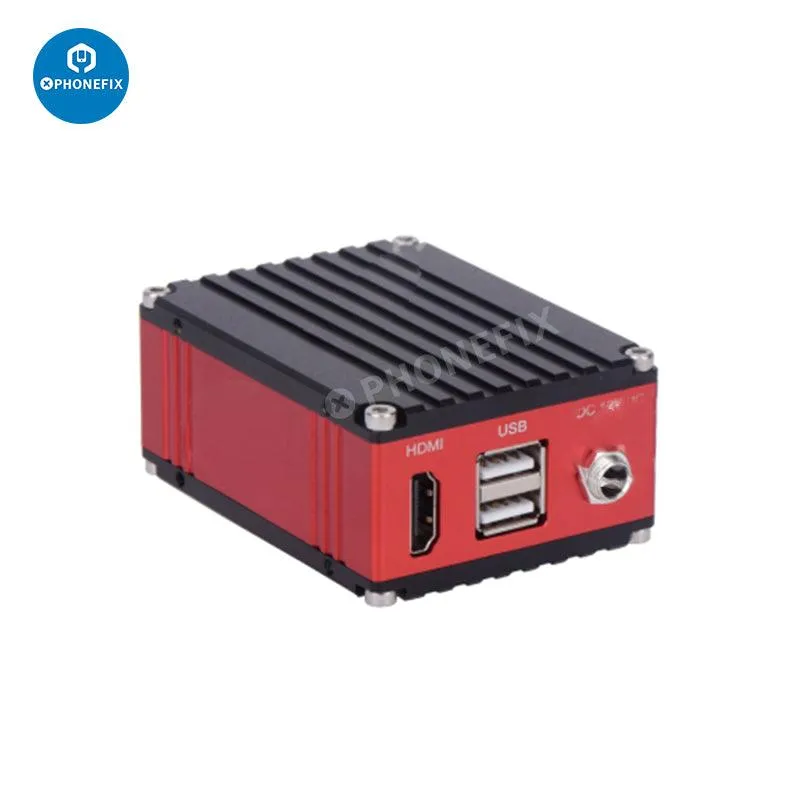

2. The product has two USB outputs, one for connecting a mouse and the other for connecting to a USB flash drive.
3. You can use the mouse to measure directly on the display. Save pictures and Excel data.

Package List:

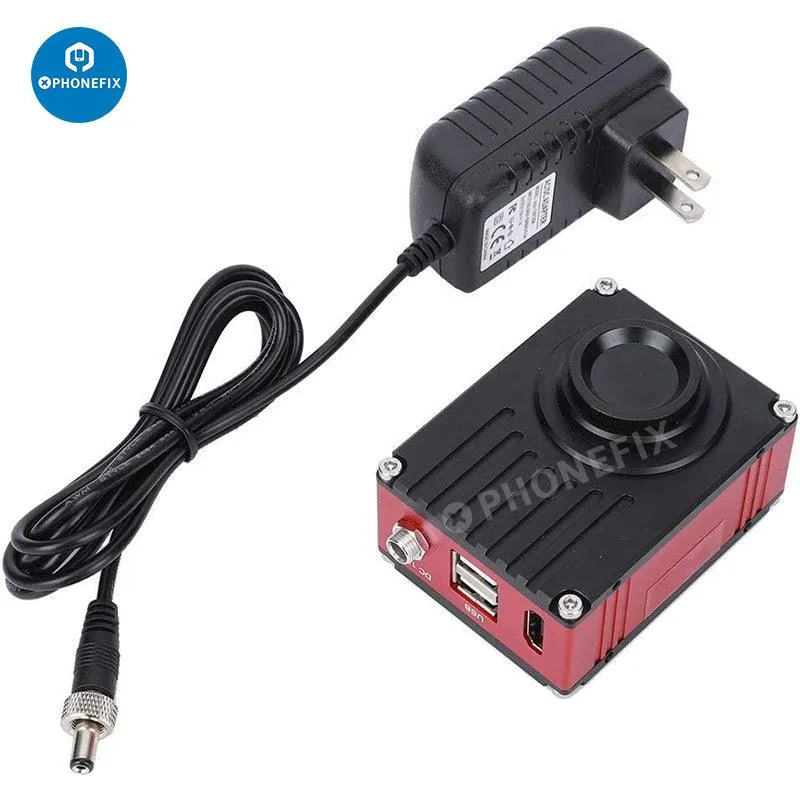

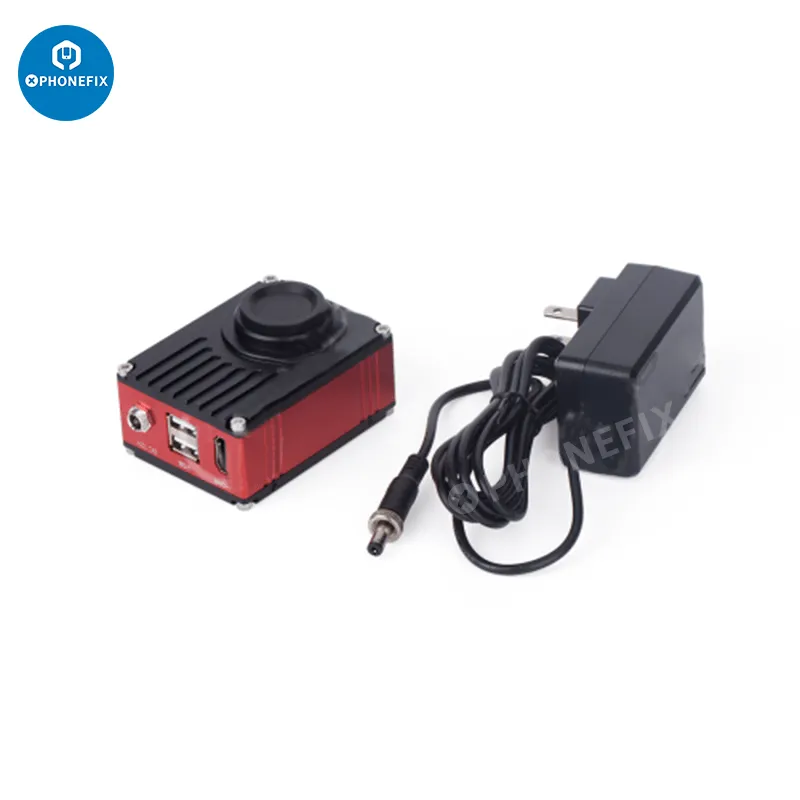

• 1 x 2K Microscope Camera
• 1 x Adapter
