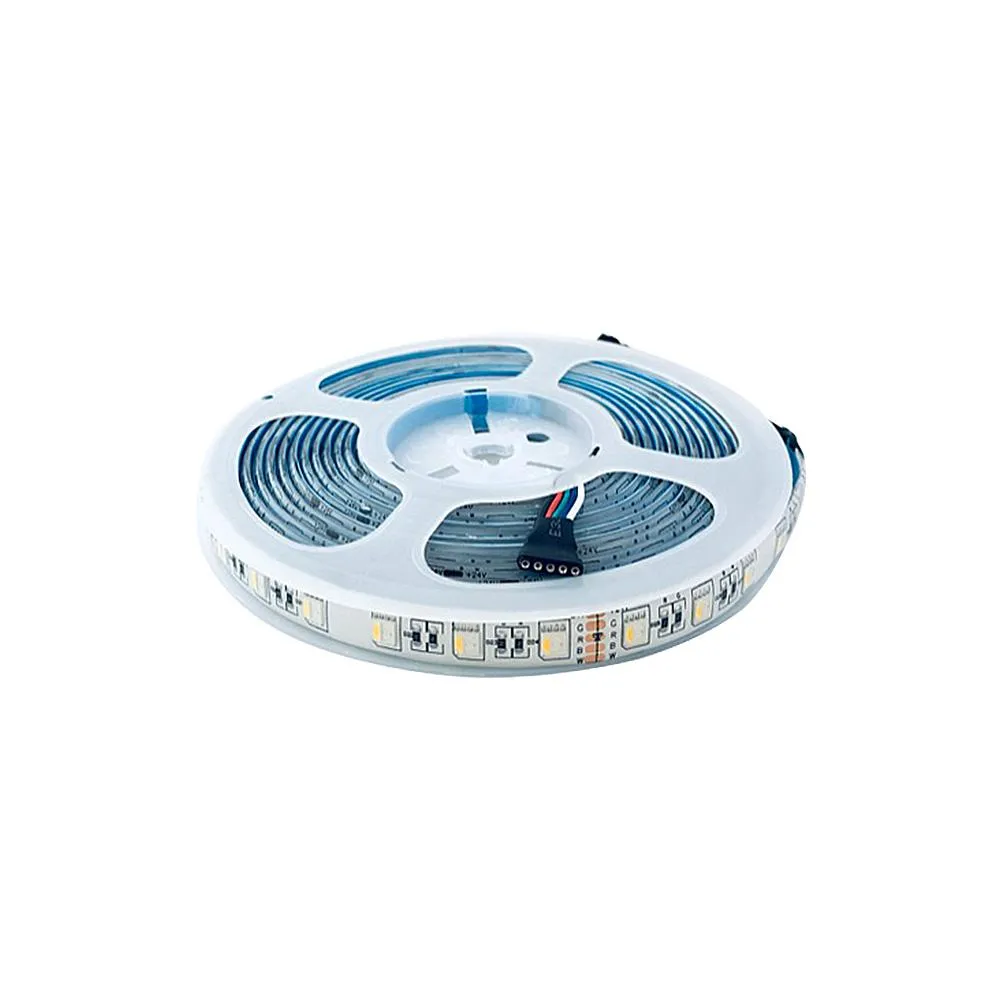

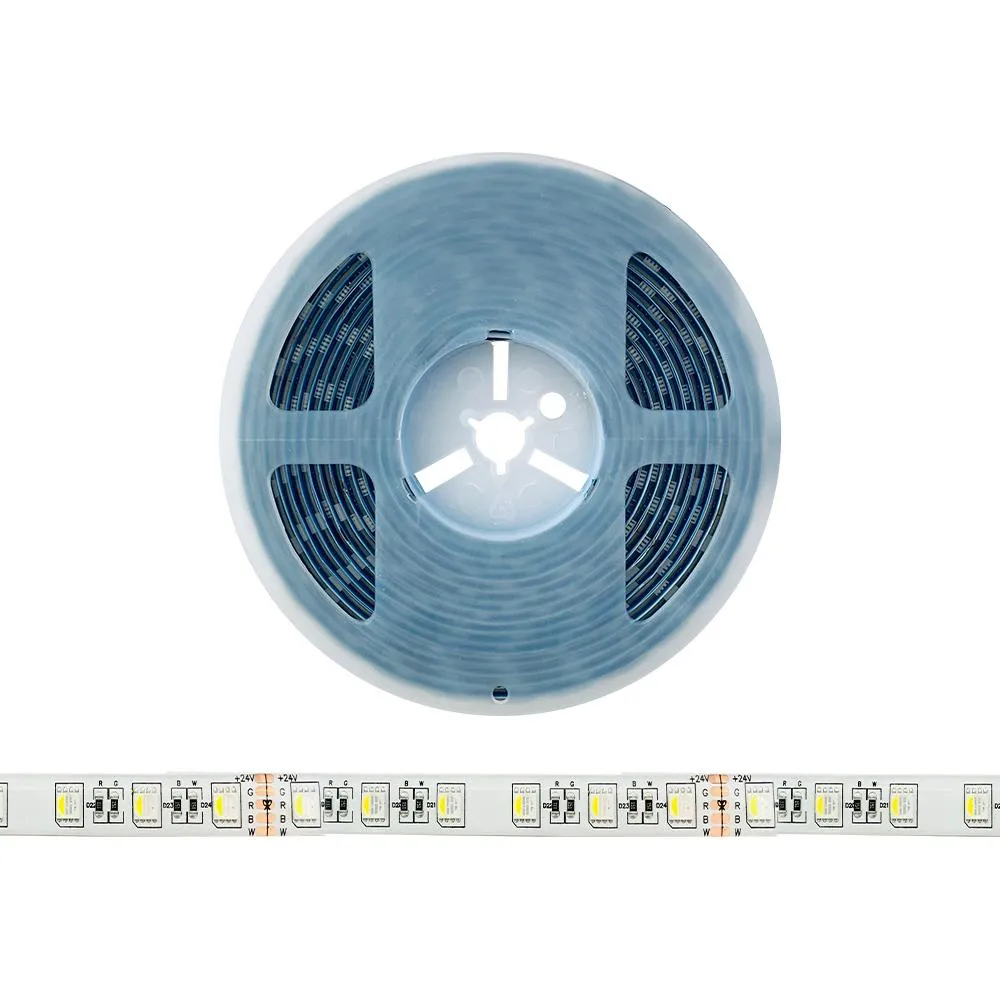

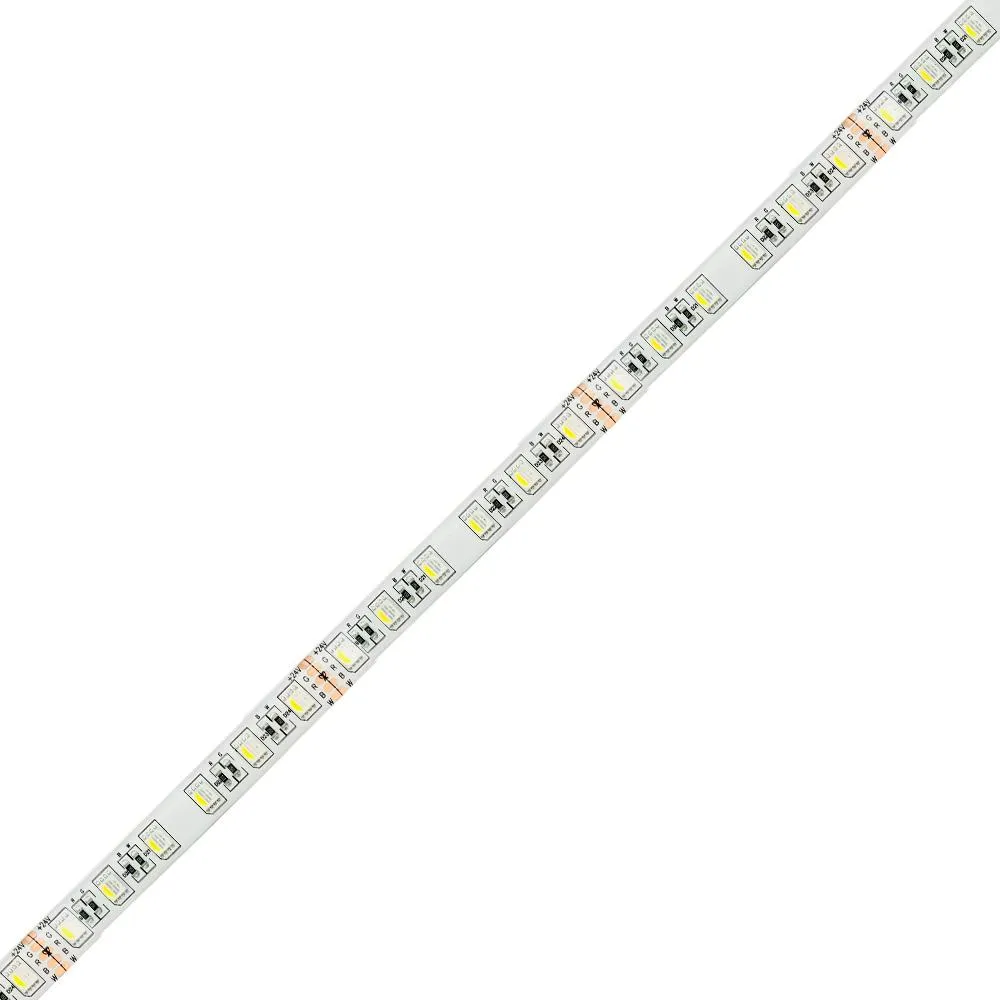

The LED RGBWW Tape Light is made with commercial-grade 12mm wide PCBs to ensure our color-changing RGBWW LED strips last longer and run cooler with high consistency and even illumination. It is perfect for applications that require a multi-color lighting solution, with a true 3000k Warm White light. Rated IP65 for Wet Locations.
The color of this RGBWW LED Tape Light has Red, Green, Blue, and 3000K Warm White CCT. with various mode settings such as Flash, Fade, and more with compatible controllers, sold separately.

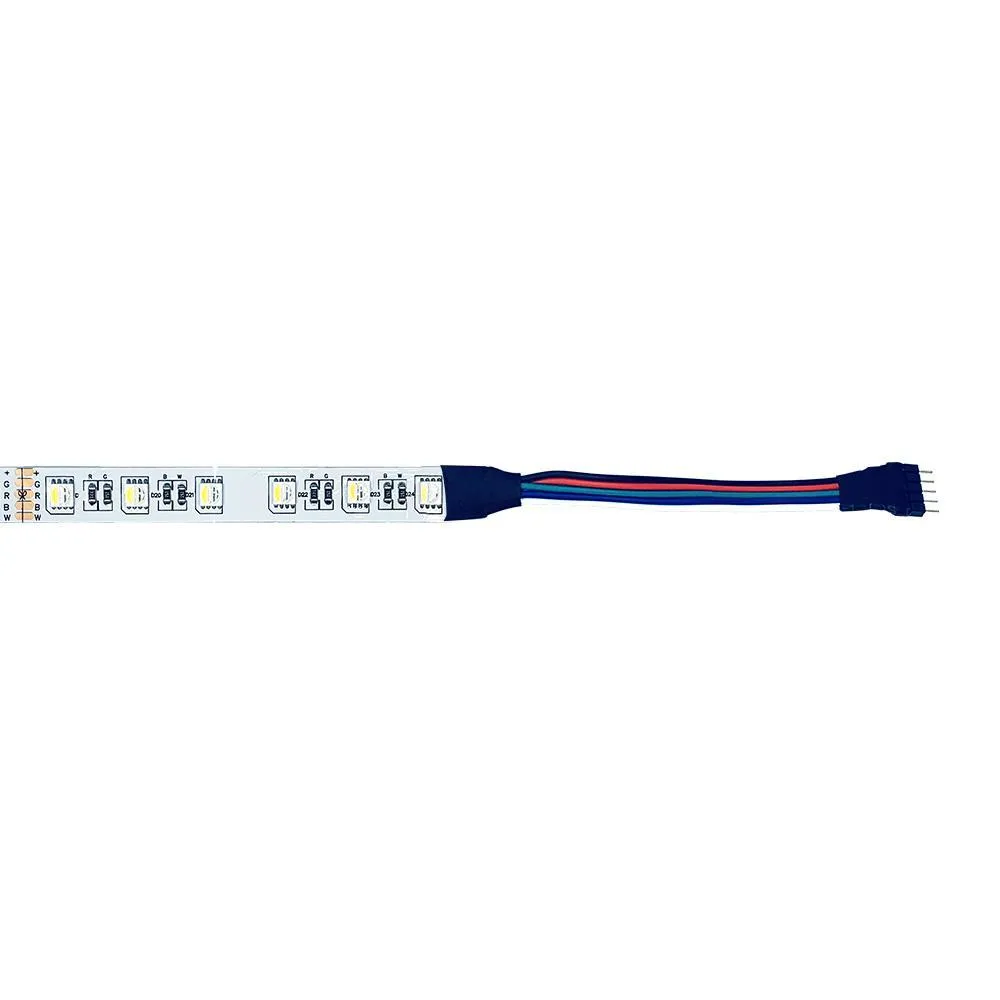

The RGBWW LED Tape Lights are made with 5-Wire power feed on the ends of each 16.4 ft reel and it is cuttable every 3.93 in. (100 mm) at its cut marking points, allowing you to cut pieces to the length desired.
* Required: Each run of LED RGBWW strip requires 24V DC LED Driver, RGBW LED Flexible Tape Light 5-Wire Power Feed, RGBW Data Repeater, RGBW Controller. Sold separately.
Key Features
- Maintenance-free
- Solid-State Construction
- High shock and Vibration Resistance
- SMD 5050 RGBWW LEDs Chipsets are high intensity, ultra-bright, and energy-efficient
- No RF interference
- Up to 50,000 hours Lifespan
- CE Listed, RoHS
Applications
- Decorative Lighting for Tradeshows, Exhibition, Retail Displays
- Architectural lighting for corridors, canopies, archways, or windows
- Downlighting or Uplighting Applications
- Backlighting or edge-lighting for sign letters
- Under-cabinet, Under-Counter, or cove lighting
- Custom DIY projects
Specifications
| Brightness | 800 Lumens/ft 2624 Lumens/meter |
|---|---|
| Power (Watts) | 4.8 watt/ft 15.8 watt/meter |
| Input Voltage | 24V DC |
| LED Colors | RGBWW (Red, Green, Blue, and 3000K Warm White) |
| CRI | ~90 |
| IP Rating | IP20 |
| Environment | Wet or Dry Location |
| LED Beam Angle | 120° |
| LED Density | 18 LEDs/ft 300 LEDs/reel |
| LED Chip Size | SMD 5050 |
| LED Spacing | 0.43 in / 11 mm |
| Length | 16.4 ft / 5 meters long |
| Width | 0.47 in / 12mm wide |
| Height | 0.06 in / 1.5 mm thick |
| Cutting Increment | 3.93 in / 100 mm at cut marking |
| Adhesive Backing | 3M Adhesive |
| Manufacturer | Elumalight |
| Rating | UL, ETL, RoHS |
| Avg. Lifetime | ± 30,000 - 50,000 hours |
| Warranty | 3 years limited |
