| Product Attribute | Attribute Value |
|---|---|
| Angle | Right Angle |
| Body Material | Zinc Die-Cast |
| Cable Diameter | 2 to 4.5 mm |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Size | 3.5 mm |
| Current Rating | 15 A |
| Diameter, Pin | 0.138 " |
| Dielectric Strength | > 500 V (RMS) |
| Insulation Material | PC 15% GR |
| Insulation Resistance | > 2 Gigaohms (Initial) |
| Insulation Type | Uninsulated |
| Material, Insulation | PC 15% GR |
| Mounting Type | Cable |
| Number of Contacts | 3 |
| Operating Force | PC 15% GR |
| Primary Type | Phone |
| Product Header | 3.5 mm Tiny Plug |
| Series | |
| Temperature Range | -20 to 65 |
| Termination | Solder |
| Type | Plug |
| Wire Size | >24 AWG |
| Wire Termination Type | Solder |
Overview

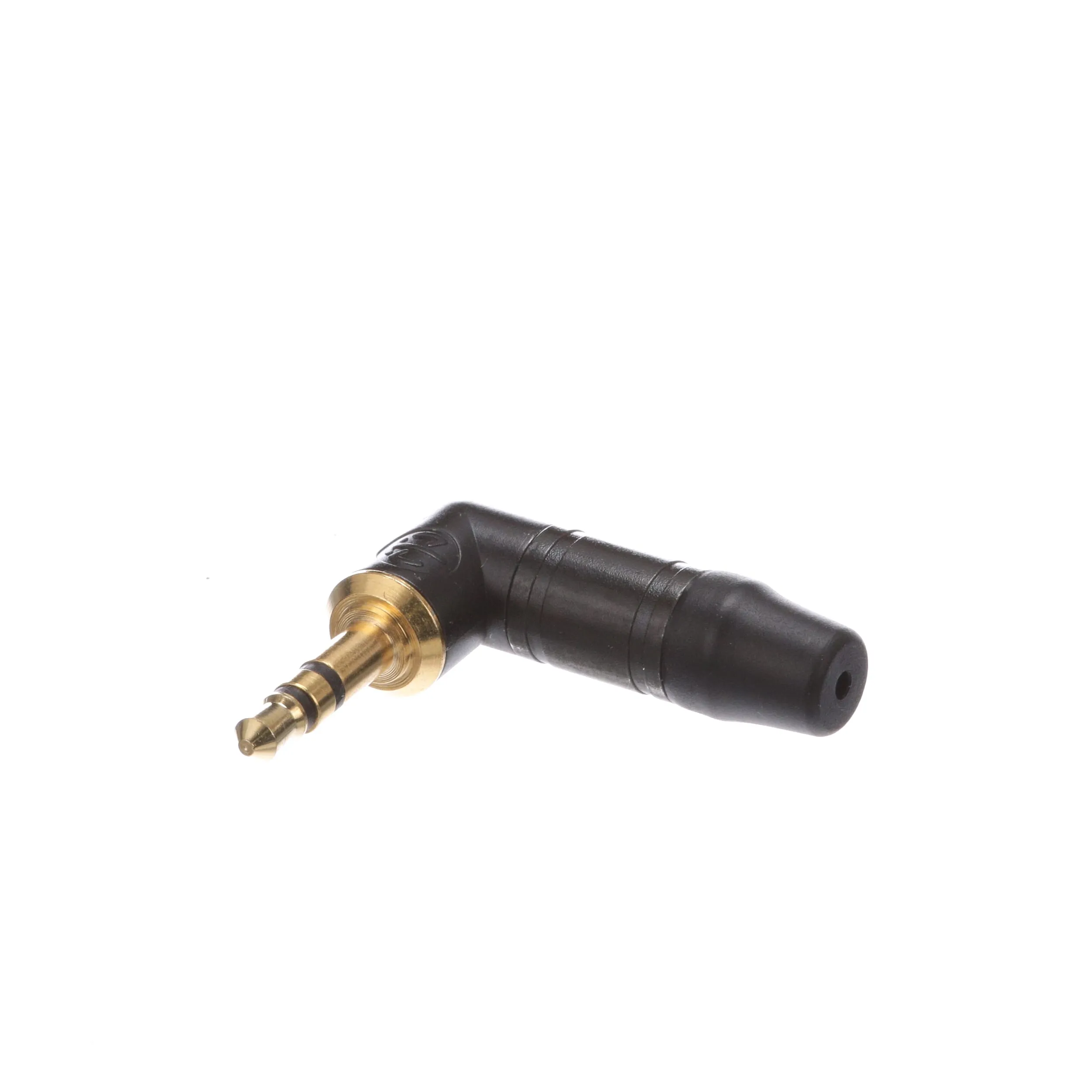

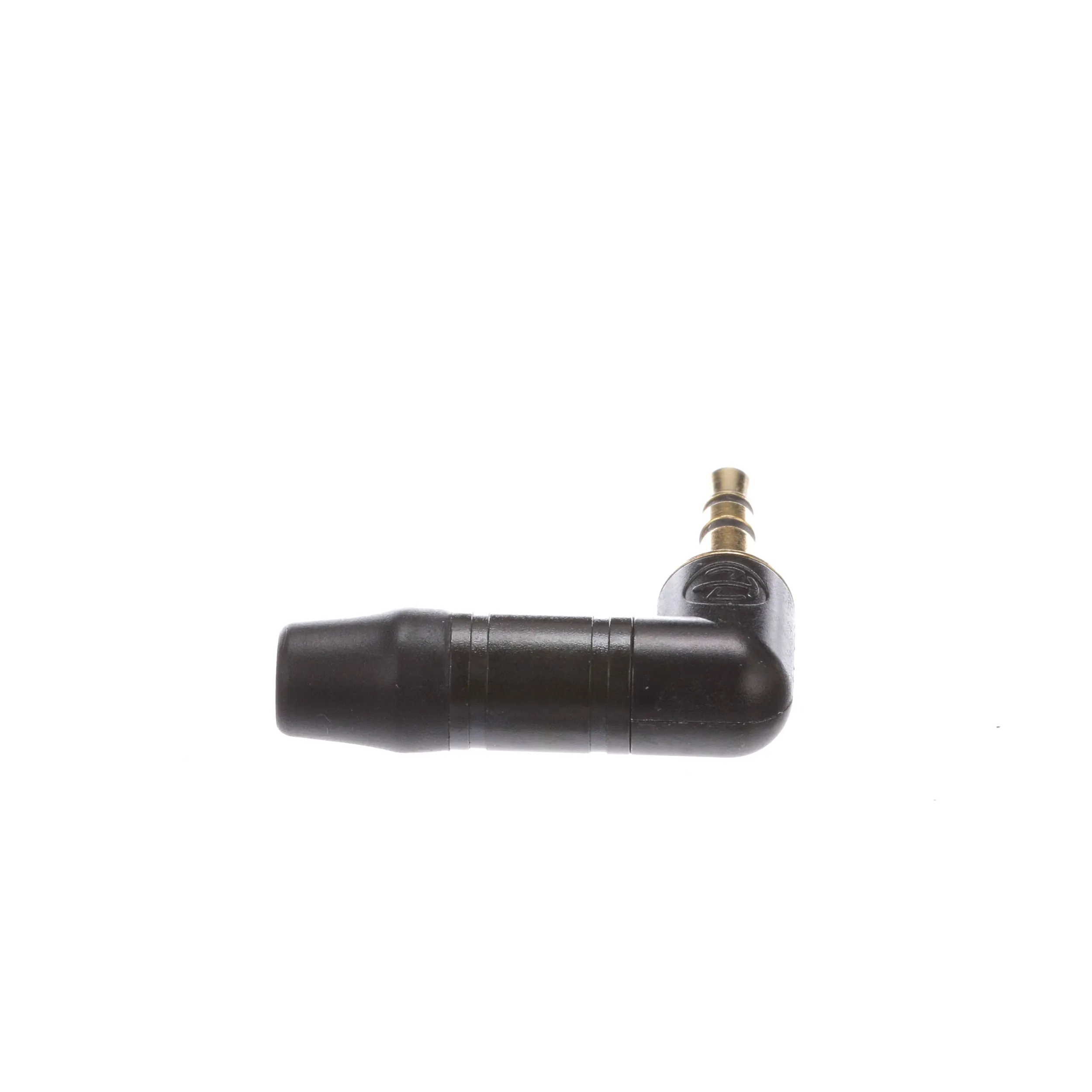

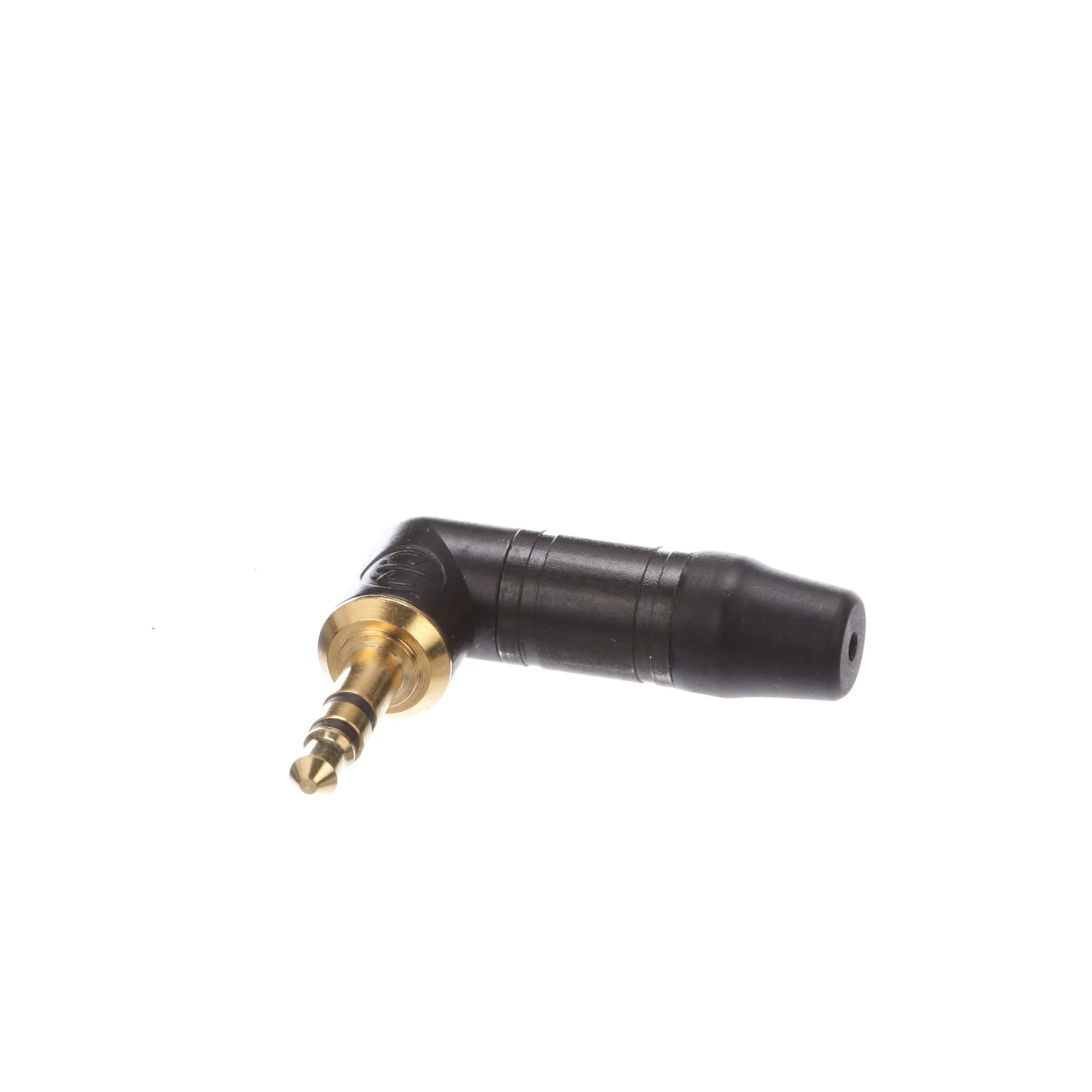

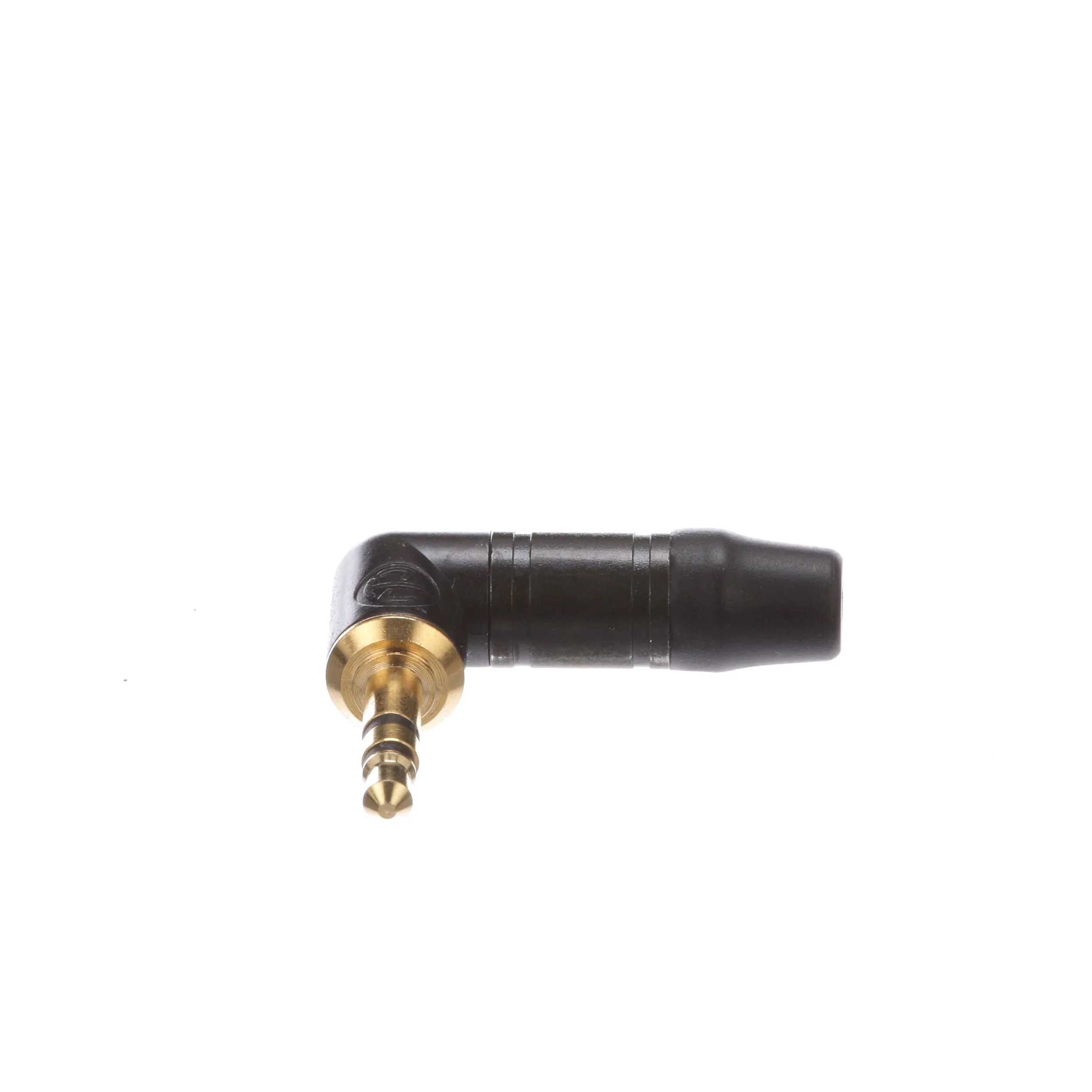

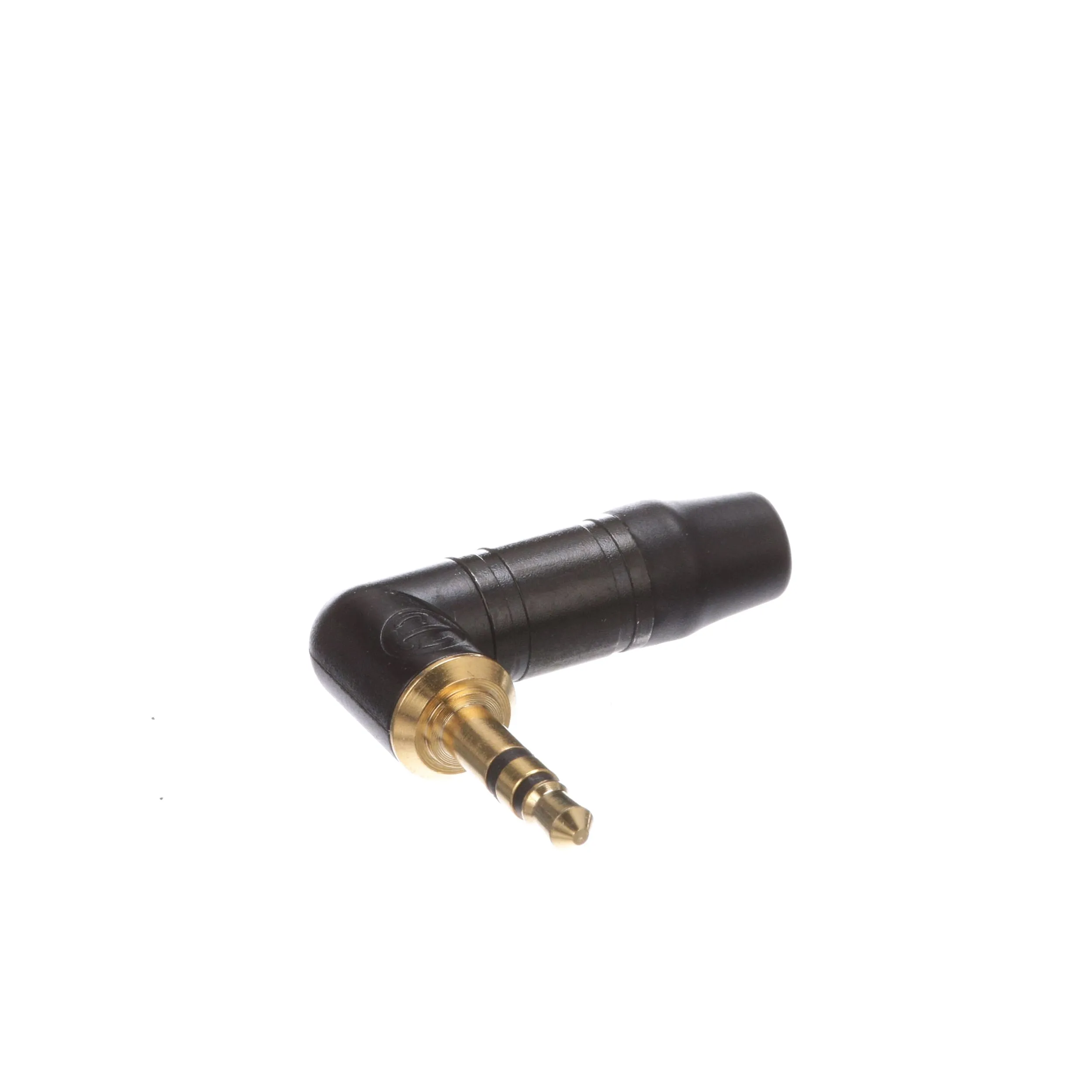

Audio Plug, 3.5 mm Size, > 24 AWG Wire, Solder Termination, CuZn39Pb3 Contact Material
3.5 mm stereo plugs feature heavy-duty cable clamp for superior strain relief, knurled surface on handle provides a sure grip, oversized solder terminal for ease of assembly. The right-angle plugs have unique internal chuck type strain relief.
The brand new tiny plug is the perfect product for professional applications with 3.5 mm stereo plugs like mic connections on video cameras, wireless headsets, etc. It offers a slim, space saving all metal design either in nickel or black chrome and excellent cable retention values using a chuck type strain relief for cables from 2 to 4.5 mm.
