PRODUCT CODE : SCC010030020

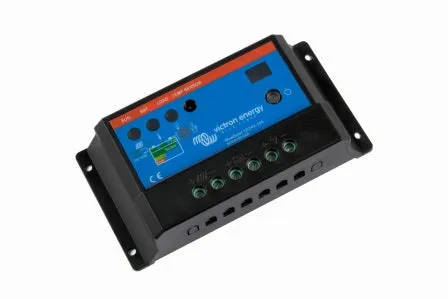

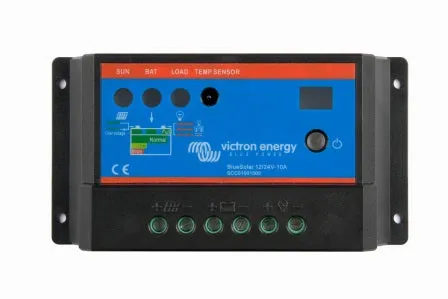

Notes: 10A unit image used for demonstration purposes.

Special Features:

• Load output with low battery voltage disconnect function.

• Lighting control function, one-timer only.

• Two digit seven segment display for a quick and easy setting of the load output functionality, including timer setting.

• Three-stage battery charging (bulk, absorption, float), not programmable.

• Load output protected against overload and short circuit.

• Protected against reverse polarity connection of the solar array and/or battery.

Day/Night Timing Options

See manufactures manual.

Enclosure:

Protection category: IP20

Terminal size: 5mm²/ AWG 10

Weight: 0.18kg

Dimensions: 70mm (H) x 133mm (W) x 33.5mm (D)
